Smart Sessions
Overview
💡 The support for smart-session is included in the Appkit SDK in the experimental
package.
Smart Sessions allow developers to easily integrate session-based permission handling within their decentralized applications (dApps). Using the grantPermissions
method, can send permission requests to wallets.
This guide will walk you through on how to use the grantPermissions
method, including the basic setup and an example of how to request permissions from a wallet.
Implementations
The grantPermissions
method provides an easy way to interact with the smart wallet to request permissions.
Step 1 | Install the library
- npm
- Yarn
- Bun
- pnpm
npm install @reown/appkit-experimental
yarn add @reown/appkit-experimental
bun add @reown/appkit-experimental
pnpm add @reown/appkit-experimental
Step 2 | Import the method
First, import the grantPermissions method from the @reown/appkit-experimental/smart-session
package.
import { grantPermissions, type SmartSessionGrantPermissionsRequest } from '@reown/appkit-experimental/smart-session'
Step 3 | Define the Permission Request
Create an object adhering to the SmartSessionGrantPermissionsRequest
type. This object specifies details like the address
, chainID
, signer
, policies
, permissions
, and expiry
time.
Example request object:
const request: SmartSessionGrantPermissionsRequest = {
expiry: Math.floor(Date.now() / 1000) + 24 * 60 * 60, // 24 hours
chainId: toHex(baseSepolia.id),
address: address,
signer: {
type: 'keys',
data: {
keys :[{
type: 'secp256k1',
publicKey: '0x...' //public key of dapp signer
}]
}
},
permissions: [ {
type: 'contract-call',
data: {
address: '0x2E65BAfA07238666c3b239E94F32DaD3cDD6498D', // sample donut contract address
abi: [
{
inputs: [{ internalType: 'uint256', name: 'amount', type: 'uint256' }],
name: 'purchase',
outputs: [],
stateMutability: 'payable',
type: 'function'
}
],
functions: [ {
functionName: 'purchase'
} ]
}
}],
policies: []
}
Step 4 | Invoke the Method
Call the grantPermissions
function, passing the request object. This will trigger the permission request via the connected wallet.
const response = await grantPermissions(request)
Step 5 | Handle the Response
Upon successful execution, the response will include the granted permissions and the session context. So the response can be handled as needed.
Response Format
{
chainId: `0x14a34`
address: `0x...`
expiry: 1727824386
permissions: [
{
type: 'contract-call',
data: {
address: '0x2E65BAfA07238666c3b239E94F32DaD3cDD6498D', // sample donut contract address
abi: [
{
inputs: [{ internalType: 'uint256', name: 'amount', type: 'uint256' }],
name: 'purchase',
outputs: [],
stateMutability: 'payable',
type: 'function'
}
],
functions: [ {
functionName: 'purchase'
} ]
}
}
],
context: '...' // Context identifier for the session
}
How to use the permissions
The dApp must call the following two endpoints from the wallet services API to use these permissions.
https://rpc.walletconnect.org/v1/wallets/prepareCalls
- Accepts an EIP-5792wallet_sendCalls
request. Responds with the prepared calls (in the case of Appkit Embedded Wallet, an Entrypoint v0.7 user operation), some context, and a signature request.https://rpc.walletconnect.org/v1/wallets/sendPreparedCalls
- Accepts prepared calls, a signature, and the context returned from prepareCalls if present. Returns an EIP-5792 calls ID.

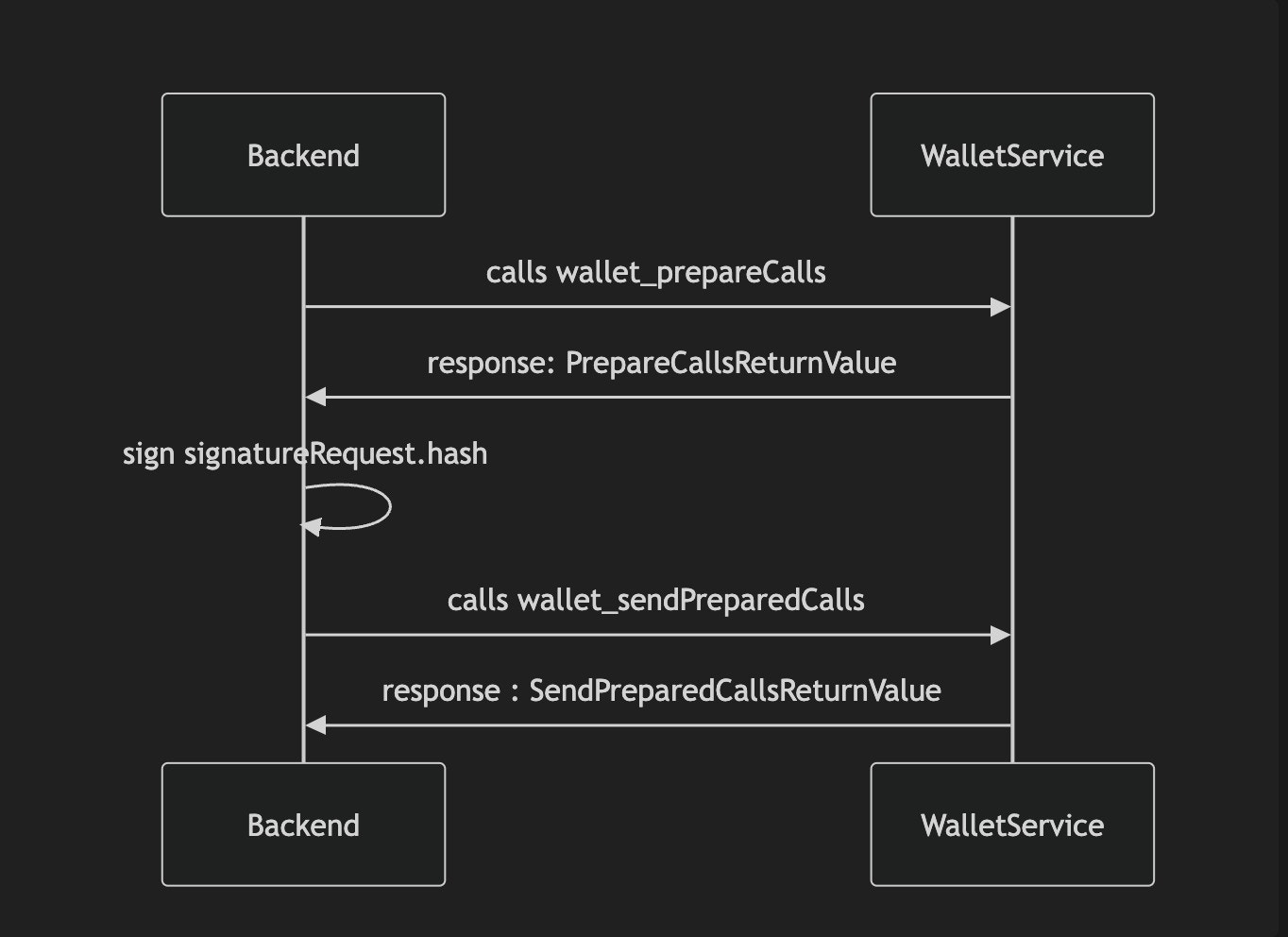

Steps to follow for executing any async action by the dApp backend.
-
Dapp makes the
wallet_prepareCalls
JSON RPC call to the wallet service API. Accepts an EIP-5792wallet_sendCalls
request, and returns the prepared calls according to the account's implementation.Parameter
- Parameter
- Example Value
type PrepareCallsParams = [{
from: `0x${string}`
chainId: `0x${string}`
calls: {
to: `0x${string}`
data: `0x${string}`
value: `0x${string}`
}[];
capabilities: Record<string, any>
}]wallet_prepareCalls([{
from: '0x...',
chainId: '0x...',
calls: [{
to: '0x...'
data: '0x...'
value: '0x...'
}],
capabilities: {
permissions: {
context: '...' // Importantly for session keys, wallets will likely need the ERC-7715 (https://eip.tools/eip/7715) permissions context for userOp construction
}
}
}])Return value
- Return value
- Return value Example
type PrepareCallsReturnValue = [{
preparedCalls: {
type: string
data: any
chainId: `0x${string}`
}
signatureRequest: {
hash: `0x${string}`
}
context: `0x${string}`
}][{
preparedCalls: {
type: 'user-operation-v07', type
data: { // ...userOp
sender: '0x...',
...
},
chainId: '0x01'
},
signatureRequest: {
hash: '0x...' // user op hash in our case
},
context: '...' // params.capabilities.permissions.context in our case
}] -
App developers are expected to Sign the
signatureRequest.hash
returned fromwallet_prepareCalls
call using the dApp key (secp256k1 or secp256r1) -
dApps makes the
wallet_sendPreparedCalls
JSON RPC call to wallet service API. The RPC accepts the prepared response fromwallet_prepareCalls
request along with a signature, and returns an EIP-5792 call bundle ID.
Reference
- ERC-7715: Grant Permissions from Wallets | https://eip.tools/eip/7715
- EIP-5792: Wallet Call API | https://eip.tools/eip/5792
- ERC-4337 Entry Point | https://github.com/ethereum/ercs/blob/master/ERCS/erc-4337.md#entrypoint-definition
Currently supported Permission types
ContractCallPermission
export enum ParamOperator {
EQUAL = 'EQUAL',
GREATER_THAN = 'GREATER_THAN',
LESS_THAN = 'LESS_THAN'
}
export enum Operation {
Call = 'Call',
DelegateCall = 'DelegateCall'
}
export type ArgumentCondition = {
operator: ParamOperator
value: `0x${string}`
}
export type FunctionPermission = {
functionName: string
args?: ArgumentCondition[]
valueLimit?: `0x${string}`
operation?: Operation
}
export type ContractCallPermission = {
type: 'contract-call'
data: {
address: `0x${string}`
abi: Record<string, unknown>[]
functions: FunctionPermission[]
}
}
